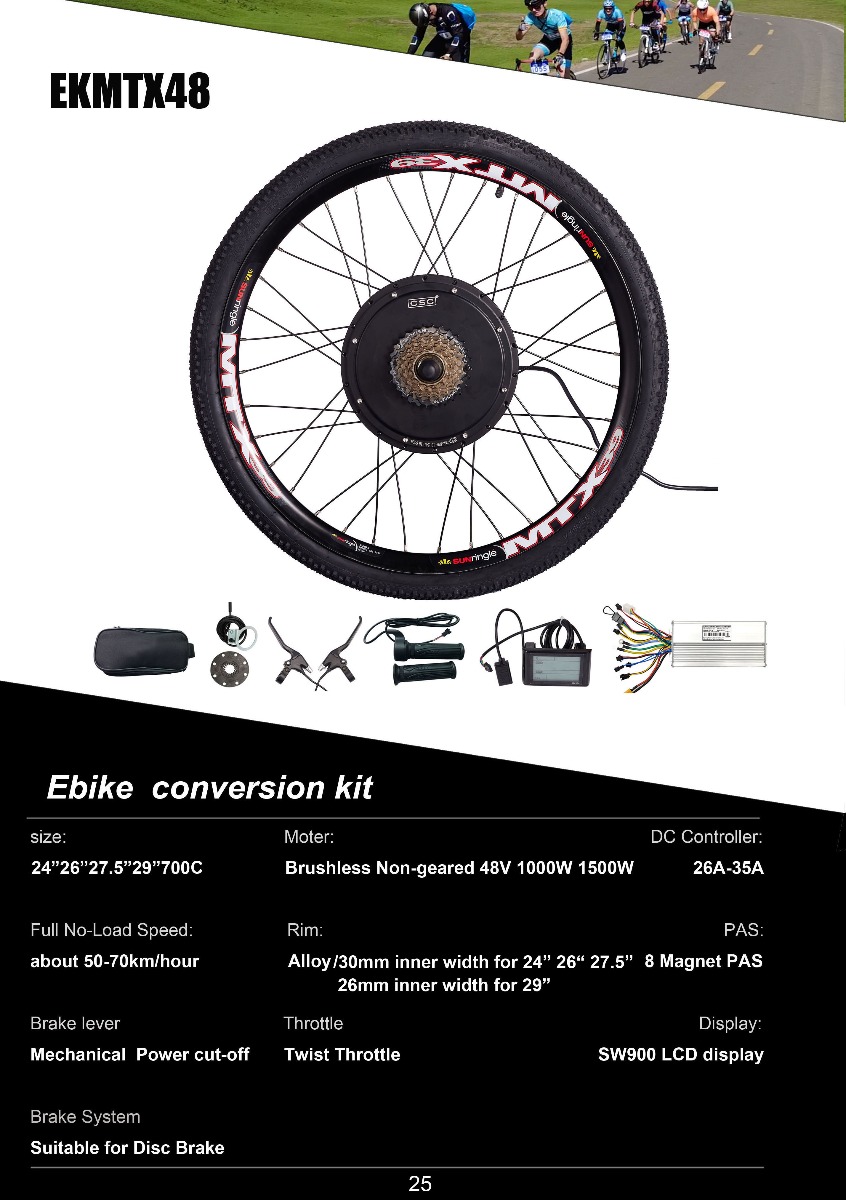

Ship From UK Stock 26" 27.5" 29" 48V 1500W Electric Bike Conversion Kit Ebike Rear Motor Wheel
Ship From UK Stock 26" 27.5" 29" 48V 1500W Electric Bike Conversion Kit Ebike Rear Motor Wheel
Packing List
1 * DC Controller
1 * Controller Bag
1 Pair * Power cut-off Brake lever
1 * SW900 Display
1 * 8 Magnet Pedal Assistant Sensor
1 * Twist Throttle
1 * 160mm disc brake
1 * 7 speed thread freewheel
1 * Outside tire+ inner tire
Product Details
48V 1000W about 45-55km/h
48V 1500W about 50-60km/h
Battery 48V 18Ah
EBB48V18AHL3H
Nominal Voltage: 48V
Nominal Capacity: 18Ah
Composed Type: 13Series 4Paralles 13S4P
Cells: 21700 4500mah Power Cells
BMS: 40 Amp continuous 100±10Amp maximum
Fit Motor Power : 48V 500W 750W 1000W 1500W
Charge Current: 3A
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Charge Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 36.4-39V
Battery Net Weight: <4.5kg
Cycle life: ≥80% capacity after 800 cycles.
Charge Time: 8-9 Hours
2. Controller
CSC 12 mosfet controller
Fit for: 48V 1000W motor wheel，SW900 Display
Rated current: 22A , Max current: 44±1A
Size: 149*83.3*42mm
CSC 15 mosfet controller
Fit for: 48V 1500W motor wheel ，SW900 Display
Rated current: 35A , Max current: 70±1A
Size: 118.2*82.33*41mm
1). Controller Bag or box,
It may be different in look, if you mind it, please contact us before you buy it.
2. SW900 Display
3. PAS sensor- 8 Magnet
5. Brake Lever
6. Throttles
Twist Throttle
