36V 15Ah

Electric Bike Battery Specifications:
Nominal Voltage: 36V
Nominal Capacity: 15Ah
Composed Type: 10Series 6Paralles 10S6P
Cells: Powerful 18650 3.7V 2500mAh
BMS: 20 Amp continuous 50±10Amp maximum
Fit Motor Power : 36V 250W 350W 500W
Charge Current: 2-5A
Charge Cut-off Voltage: 42V
Discharge Cut-off Voltage: 30V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C

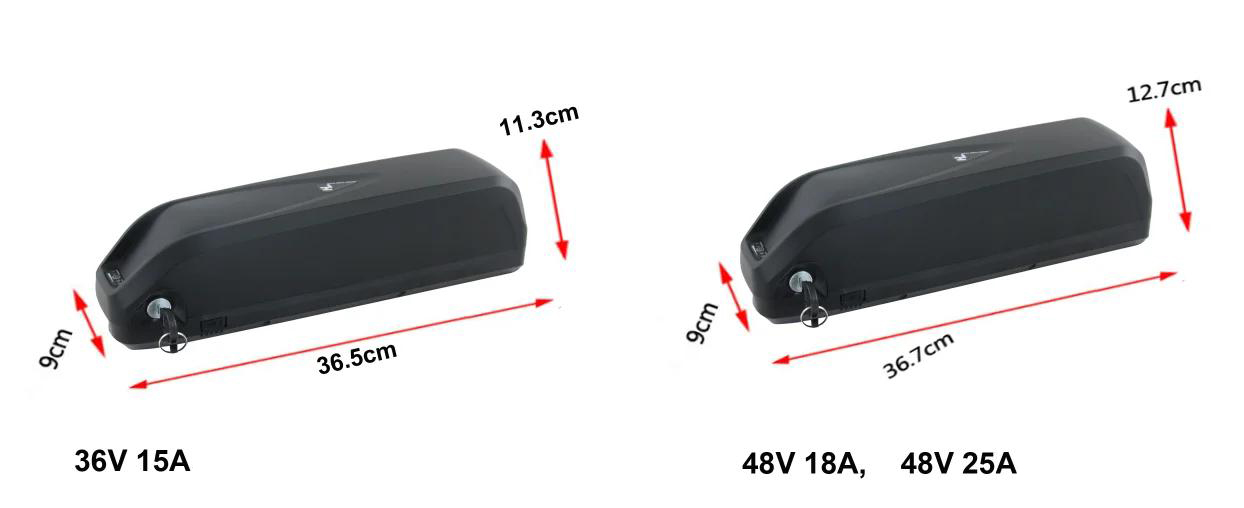

Dimensions: 90*110*360mm
Battery Weight: 3.7kg
Cycle life: ≥80% capacity after 800 cycles.

48V 18Ah

Nominal Voltage: 48V

Nominal Capacity: 18Ah
Composed Type: 13Series 4Paralles 13S4P
Cells: 21700 4500mah Power Cells
BMS: 40 Amp continuous 100±10Amp maximum
Fit Motor Power : 48V 500W 750W 1000W 1500W
Charge Current: 3A
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C

Charge Cut-off Voltage: 54.6V

Discharge Cut-off Voltage: 36.4-39V

Battery Dimension:  365*90*110mm (Length*Width*Height)

Battery Net Weight: <4.5kg

Cycle life: ≥80% capacity after 800 cycles.

Charge Time: 8-9 Hours

48V 25Ah

Nominal Voltage: 48V

Nominal Capacity: 24Ah
Composed Type: 13Series 5Paralles 13S5P
Cells: 21700 5000mah Power Cells
BMS: 40 Amp continuous 100±10Amp maximum
Fit Motor Power : 48V 500W 750W 1000W 1500W
Charge Current: 4A
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C

Charge Cut-off Voltage: 54.6V

Discharge Cut-off Voltage: 36.4-39V

Battery Dimension:  365*90*110mm (Length*Width*Height)

Battery Net Weight: <4.5kg

Cycle life: ≥80% capacity after 800 cycles.

Charge Time: 8-9 Hours

1)please note it is female xt60 port connecotor for the battery. About the charge Port, we will send according to your country.
